Steel has been at the heart of modern architecture for more than a century, enabling the construction of skyscrapers, bridges, airports, and complex industrial facilities that would otherwise be impossible with traditional materials like stone, brick, or even concrete alone. Its combination of strength, durability, and versatility has redefined the boundaries of what architects and engineers can achieve.
Beyond its technical performance, steel also represents a growing conversation around sustainability. While its production is energy-intensive and contributes significantly to global carbon emissions, advances in recycling technologies, cleaner manufacturing processes, and innovations like hydrogen-reduced steel are reshaping its environmental profile.
This article examines steel from an architectural perspective, exploring its uses, dimensions, mechanical properties, sustainability implications, advantages, and limitations. It also provides data-rich tables to serve as a technical reference for architects, engineers, and students.
Uses of Steel in Architecture
Steel has an extensive range of applications across building and infrastructure design:

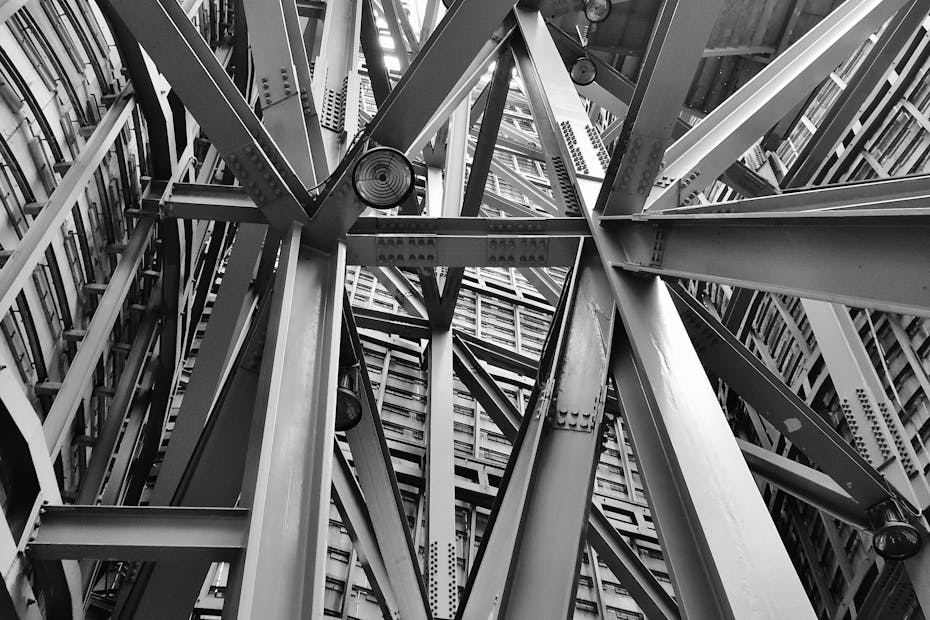

- Structural Frameworks: The skeleton of skyscrapers, stadiums, and bridges relies heavily on steel for its ability to withstand massive loads and provide long spans without intermediate supports.
- Facades & Cladding: Thin steel plates and panels are used for exterior walls, offering durability and modern aesthetics.
- Roofing & Flooring Systems: Corrugated sheets and decking panels create lightweight but strong solutions for roofs and elevated floors.

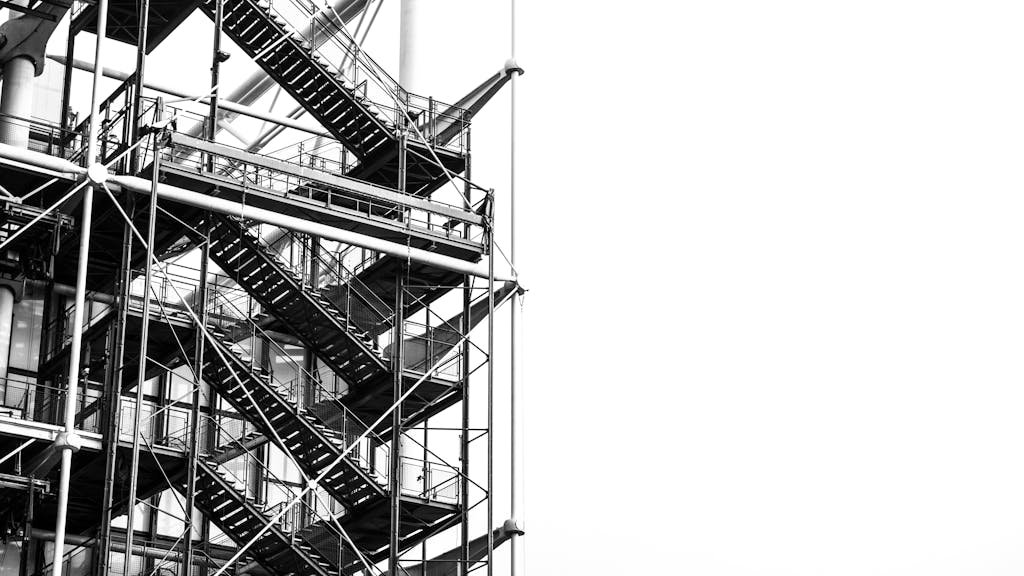

- Interior Applications: Steel staircases, railings, shelving, and furniture combine strength with elegance.
- Infrastructure & Utilities: From transportation hubs to energy plants and warehouses, steel is often the backbone of essential facilities.
Common Dimensions and Forms
Steel is produced in multiple standardized forms, each optimized for specific structural or architectural functions:
| Form of Steel | Common Dimensions (mm) | Typical Applications |
|---|---|---|
| I-Beams (H-Beams) | Depth 100–600 mm | Beams, columns, bridges |
| Channels (C-Sections) | Depth 75–400 mm | Trusses, floor joists |
| Steel Plates | Thickness 5–200 mm | Flooring, cladding, tanks |
| Rods & Bars | Diameter 6–40 mm | Reinforcement, anchors |
| Hollow Sections (RHS, SHS, CHS) | 20×20–500×500 mm | Frames, façades, towers |
| Steel Mesh & Grids | Wire 4–12 mm | Reinforcement, fencing |
These forms provide architects and engineers with flexibility in design while ensuring compliance with global standards.
Mechanical Properties of Steel
The mechanical performance of steel is one of the main reasons it is so dominant in construction.
| Property | Typical Value |
|---|---|
| Density | 7850 kg/m³ |
| Yield Strength | 250–550 MPa (structural grades) |
| Tensile Strength | 400–700 MPa |
| Elastic Modulus | 200 GPa |
| Hardness (Brinell) | 120–200 HB |
| Thermal Conductivity | 45–60 W/m·K |
| Melting Point | ~1370–1510 °C |
These properties allow steel to carry high loads, resist deformation, and perform well under both tension and compression — qualities essential for structural frameworks.
Environmental Impact of Steel
While steel’s role in construction is undeniable, it also has a significant environmental footprint:
- Carbon Emissions: Steel production accounts for roughly 7–9% of global CO₂ emissions due to reliance on blast furnaces and coal.
- Recyclability: Steel is 100% recyclable without loss of quality, making it one of the most circular building materials available.
- Energy Use: High embodied energy during production, though technologies like Electric Arc Furnaces (EAF) are reducing this.
- Durability: Steel structures have very long lifespans, reducing the need for frequent replacements.
Life Cycle Sustainability Table
| Factor | Performance |
|---|---|
| Recyclability | 100% recyclable |
| Reuse Potential | High (beams, plates can be repurposed) |
| Embodied Energy | High (20–35 MJ/kg) |
| Carbon Intensity | High, but declining with new tech |
| Longevity | 50–100+ years with maintenance |
Advantages of Steel in Architecture
- High Strength-to-Weight Ratio: Supports large spans and tall structures.
- Design Flexibility: Enables innovative, curved, and complex geometries.
- Prefabrication: Steel elements can be manufactured off-site, reducing on-site labor and speeding up construction.
- Durability: Resistant to pests, mold, and decay.
- Recyclability: Fully compatible with circular economy strategies.
Limitations of Steel
- Corrosion: Requires protective coatings, galvanization, or stainless steel grades for durability.
- Fire Resistance: Steel loses strength at high temperatures; fireproofing measures like intumescent coatings are necessary.
- Carbon Footprint: High initial environmental cost.
- Market Volatility: Prices fluctuate with global demand and energy costs.
Summary Table of Steel in Architecture
| Category | Details |
|---|---|
| Primary Uses | Structural frameworks, façades, roofing, interiors |
| Common Forms | Beams, channels, plates, rods, hollow sections |
| Density | 7850 kg/m³ |
| Strength Range | Yield: 250–550 MPa, Tensile: 400–700 MPa |
| Thermal Conductivity | 45–60 W/m·K |
| Sustainability | 100% recyclable, high embodied energy |
| Advantages | Strong, versatile, durable, prefabrication-ready |
| Limitations | Corrosion, fire vulnerability, emissions footprint |
Conclusion
Steel continues to be a cornerstone of architecture and construction. Its structural capacity, adaptability, and role in pushing architectural design boundaries make it irreplaceable in many applications. However, the material also presents environmental challenges that must be addressed through innovation, recycling, and greener production methods.
For architects, engineers, and planners, understanding steel’s full profile — from dimensions and mechanical properties to sustainability and limitations — is essential in making informed decisions that balance performance with environmental responsibility.
